01
CNC machining
Drill or groove the panels to the requirements of the selected connector and joint.
DrillingTool-free final assembly
D001-9
A drilling-type connector for 45° miter and surface-to-surface joints, with an application-specific panel range for each joint.
Best evaluation fit: Clean corner construction where the exact application-specific thickness range is checked first.
Model D001-9- Process
- Drilling
- Applications
- 2 joint options
- Tensile
- 700 N
- Shear load
- 260 kg
- Anti-detachment
- 200 N
- Machining route
- Drilling
- Applications
- 2
- Panel selection
- See each joint below
- Final assembly
- Tool-free after preparation
Where it fits
Application-specific data
Check the panel range for the exact joint before selection.
| Application | Panel thickness | Machining route |
|---|---|---|

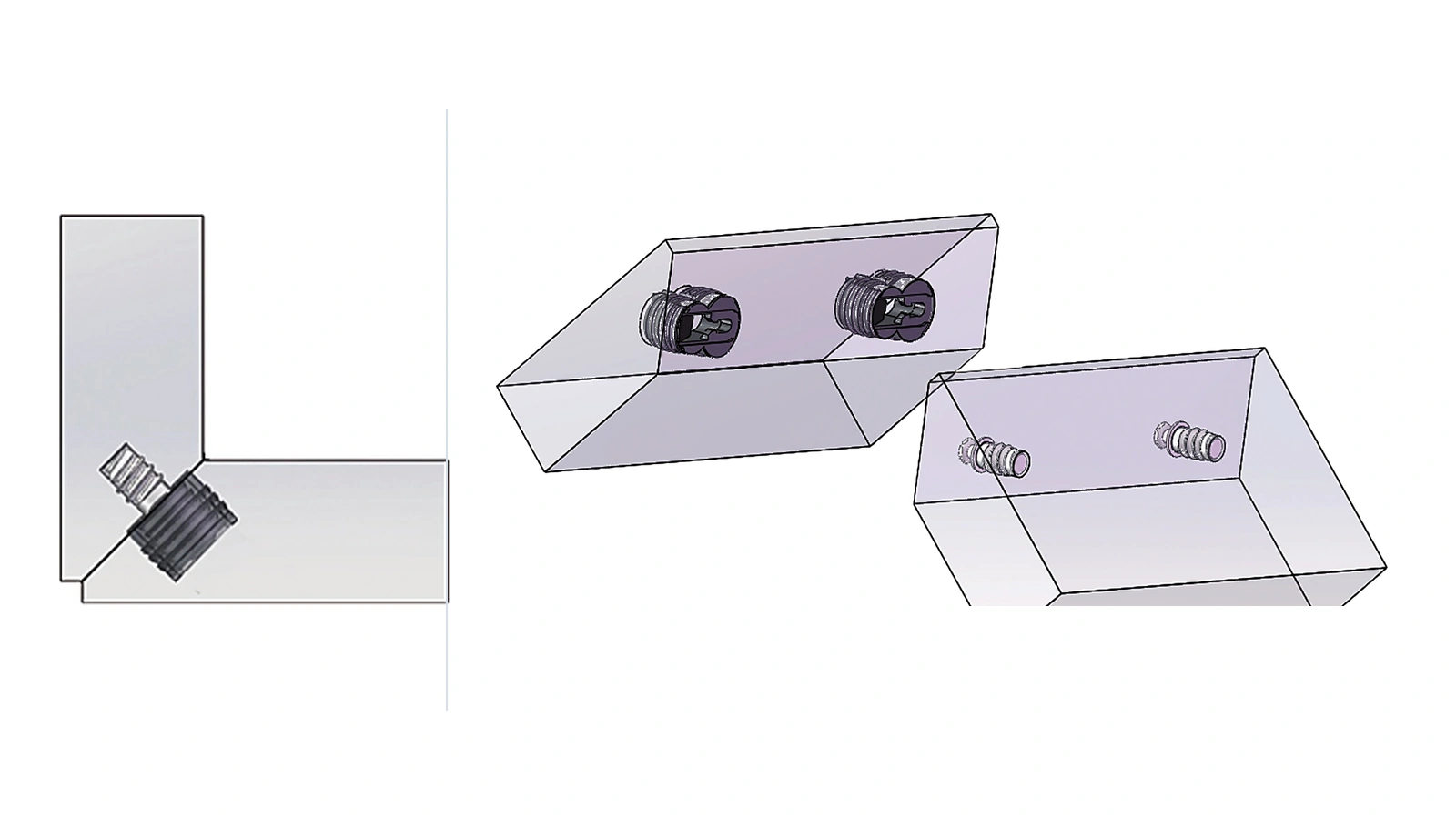

| 45° miter joint | 18–25 mm | Drilling |
| Surface-to-surface connection | 16–25 mm | Drilling |
Final assembly method
Tool-free after production preparation.
Align and engage the CNC-prepared panels after the drilling-type connector components have been pre-installed in production.
CNC machining and connector pre-installation are required before final furniture assembly.
02
Connector pre-installation
Install the connector components during furniture production and verify their orientation.
03
Tool-free final assembly
Align and engage the prepared panels at final assembly without an additional assembly tool, where the application has been validated.
Connection view
See how the connector sits in the joint.
Confirm orientation, panel relationship and assembly access before sample testing.

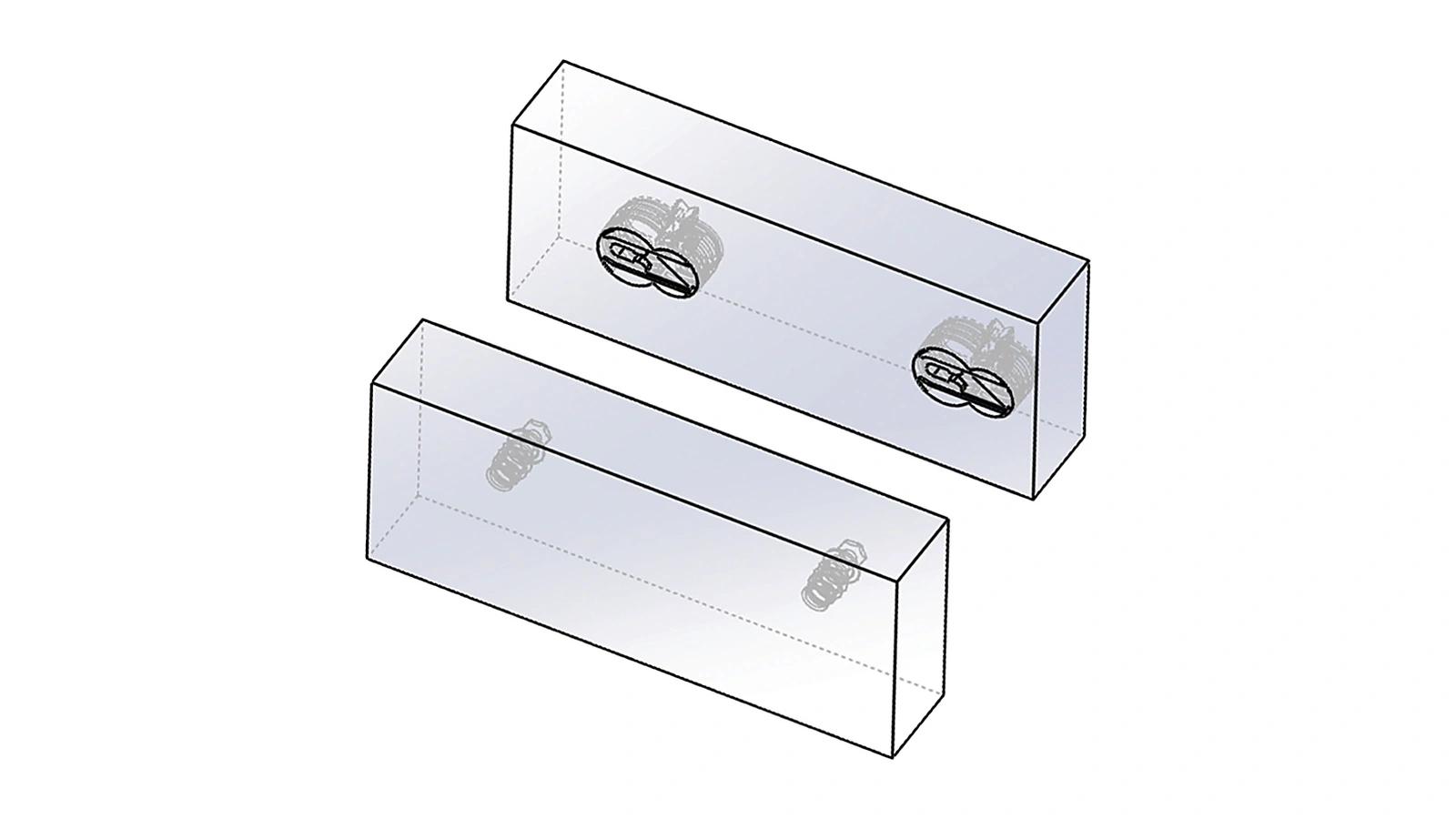

Surface-to-surface connection
Joint selection data
- Panel range
- 16–25 mm
- Machining
- Drilling
Performance data
Compare the published values
Use these figures to compare models, then test the selected connector in the intended board material and machining setup.
Tensile force
700 N
Load-bearing shear
260 kg
Anti-detachment force
200 N
Before production: Test the connector in your own board material, edge distance, machining tolerance and assembly conditions.
Evaluation workflow
From technical page to pilot assembly
- Machine the panels for the selected model
- Pre-install the connector components
- Align the prepared panels
- Engage the joint during final furniture assembly
- Record fit, appearance and assembly results before production approval.
Buyer questions
Technical selection questions
Is D001-9 suitable for my application?
It is a candidate when your application, machining method and panel thickness match the data above.
Are machining dimensions available?
Contact engineering for the current machining reference and revision before preparing production tooling.
Can I rely on the listed forces for final design?
Use them for preliminary comparison, then conduct application-specific validation.
Related by application
Compare alternative machining paths
Model S001-9Slotting / groovingTool-free final assembly
S001-9
A grooving-type connector for 45° miter and surface-to-surface joints, with an application-specific panel range for each joint.
- Application
- 45° miter joint / Surface-to-surface connection
- Thickness
- 18–25 mm / 12–18 mm
Engineering next step
Test D001-9 in your real assembly
Tell us which of the 45° miter joint or Surface-to-surface connection applications applies, along with panel material and thickness. We’ll use the product data to prepare the sample discussion and confirm fit in your production conditions.
