Concealed furniture connection systems
Concealed Furniture Connectors for Tool-Free Assembly
Innovative concealed joining solutions for tool-free assembly in cabinets, modular furniture, panel furniture and modern furniture manufacturing.
Tool-free refers to final furniture assembly after the required panel machining and connector pre-installation.
Concealed
Keep visible furniture surfaces clean while the connector works inside the joint.
Tool-free final assembly
Join correctly machined, pre-installed panels without an additional assembly tool in validated applications.
Reliable
Compare listed tensile, shear and anti-detachment figures before physical validation.
Manufacturing ready
Choose drilling or grooving around the production process already in place.
Furniture applications
Start with the furniture and joint.
Choose the manufacturing scenario first, then narrow the connector by machining route, panel thickness and verified joint data.
010203040506
Tool-free furniture assembly
Prepared panels for faster final assembly
View application →Modular cabinet systems
Sides, tops, bottoms and carcass structures
View application →45° mitered joints
Clean corners with application-specific ranges
View application →Panel-to-panel connections
Concealed face-to-face panel joining
View application →Internal shelves
Hidden shelf-to-side connections
View application →Drawer and box assembly
Front, back, side and box-style interfaces
View application →How tool-free assembly works
Machining first. Tool-free at final assembly.
The distinction matters for engineers, production teams and end users. Every model still requires the correct preparation and sample validation.
01
CNC machining
Drill or groove the panels to the requirements of the selected connector and joint.
02
Connector pre-installation
Install the connector components during furniture production and verify their orientation.
03
Tool-free final assembly
Align and engage the prepared panels at final assembly without an additional assembly tool, where the application has been validated.
Connector selector
Build a rule-based shortlist.
Filter by application, machining route, panel thickness and tool-free final assembly requirement.
Choose at least one criterion to build your shortlist.
Priority models
Technical starting points

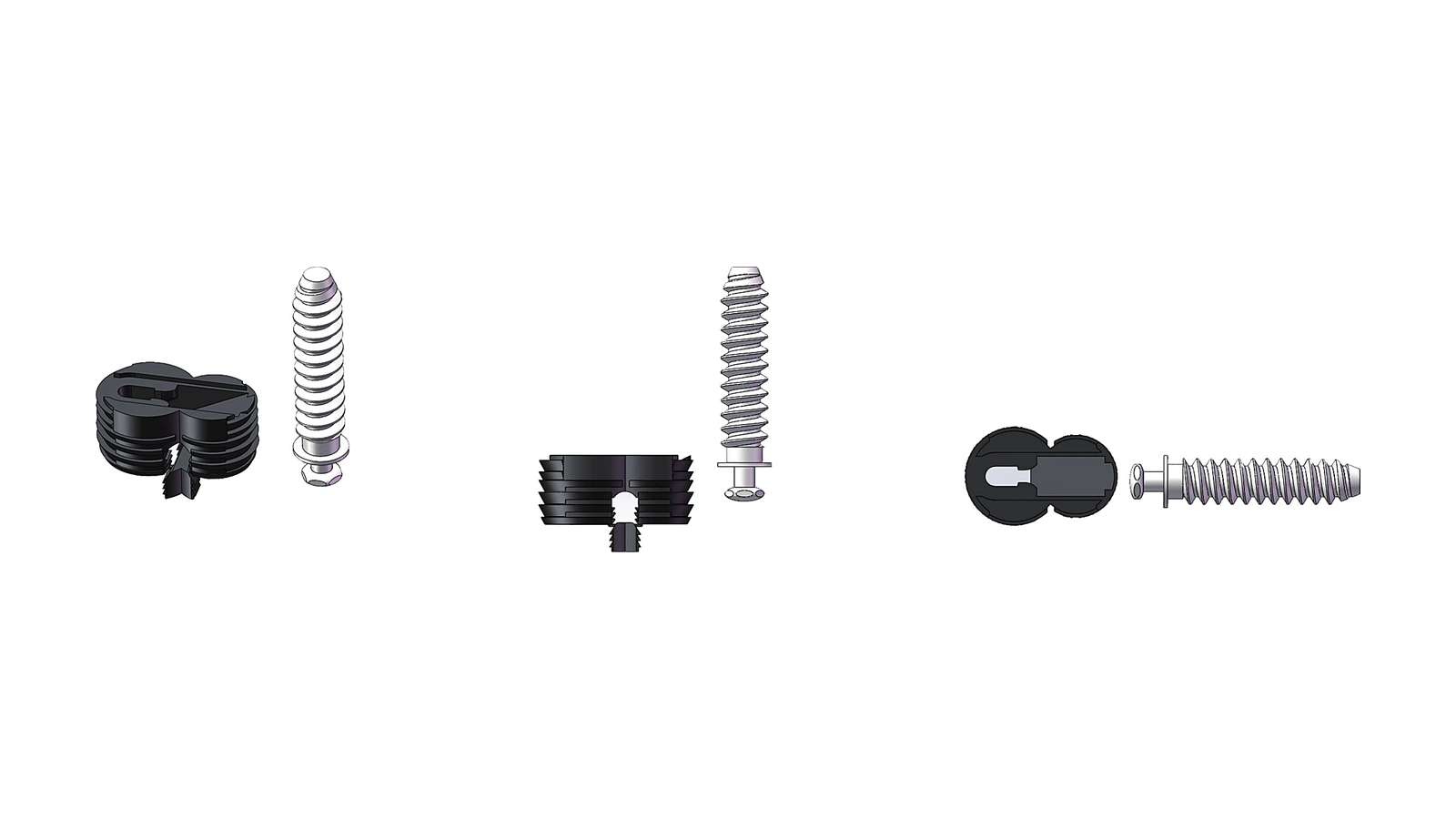

Model D001DrillingTool-free final assembly
D001
A drilling-type connector for full cabinet assembly in 16–25 mm panels.
- Application
- Full cabinet assembly
- Thickness
- 16–25 mm

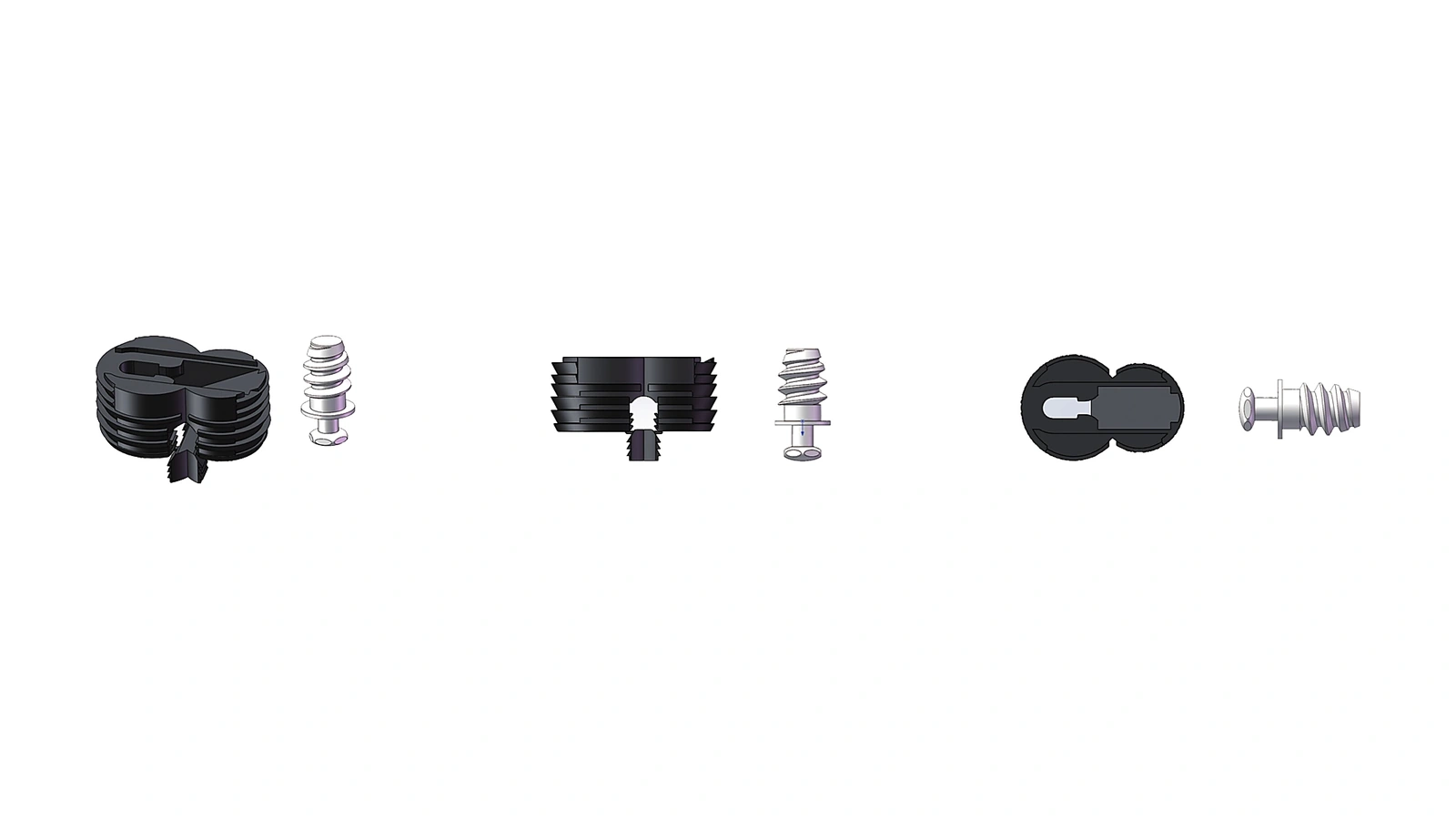

Model D001-9DrillingTool-free final assembly
D001-9
A drilling-type connector for 45° miter and surface-to-surface joints, with an application-specific panel range for each joint.
- Application
- 45° miter joint / Surface-to-surface connection
- Thickness
- 18–25 mm / 16–25 mm

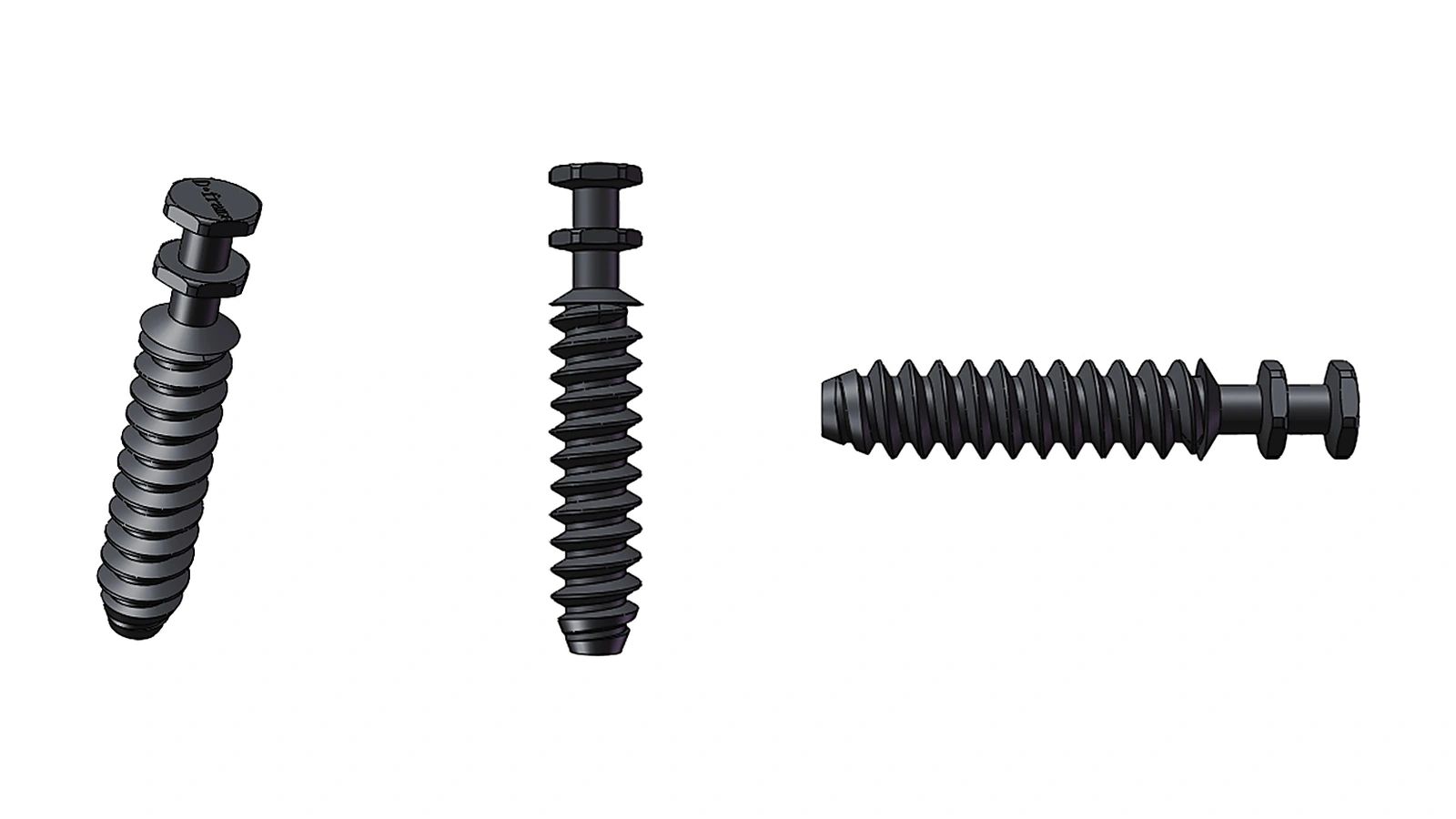

Model S001Slotting / groovingTool-free final assembly
S001
A grooving-type connector for full cabinet assembly in 12–18 mm panels.
- Application
- Full cabinet assembly
- Thickness
- 12–18 mm
Engineering data
Make the joint measurable.
Compare published performance values, then confirm the selected connector in your panel material and production process.
700 N
Tensile value for selected drilling-type models
900 N
Tensile value for selected grooving-type models
260 kg
Published load-bearing shear value
Engineering next step
Move from shortlist to sample assembly
Share the furniture application, joint drawing, panel material, thickness and machining route. We’ll use the model data to prepare the discussion.
