Model D002-1DrillingConfirm specification
D002-1

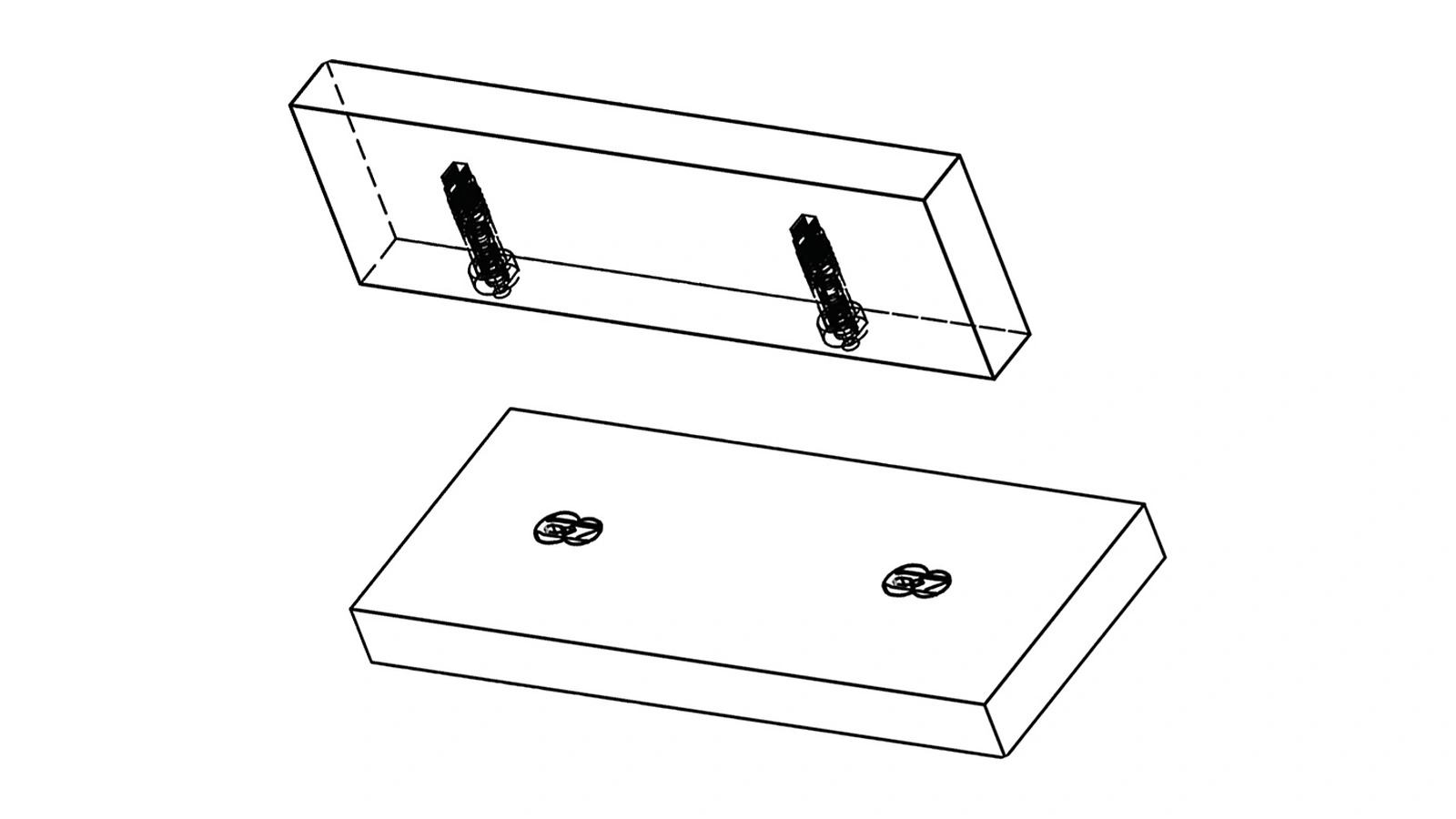

A drilling-type connector for internal shelf connections in 16–25 mm panels.
- Application
- Internal shelf connection
- Thickness
- 16–25 mm
Application solution
Internal shelf connection
Evaluate hidden support inside cabinet structures where visible hardware should be minimized.
Decision path
What to confirm before model selection
01
Shelf and side-panel material
02
16–25 mm thickness check
03
Drilling access and assembly sequence
04
Load assumptions validated in the real cabinet
Confirm the D002-1 tensile value with engineering before final selection.
Matching models
Models for this application
Model D002-1Engineering next step
Validate the internal shelf connection in your material
Share your application, panel material, thickness and machining route so we can prepare the right sample discussion.
