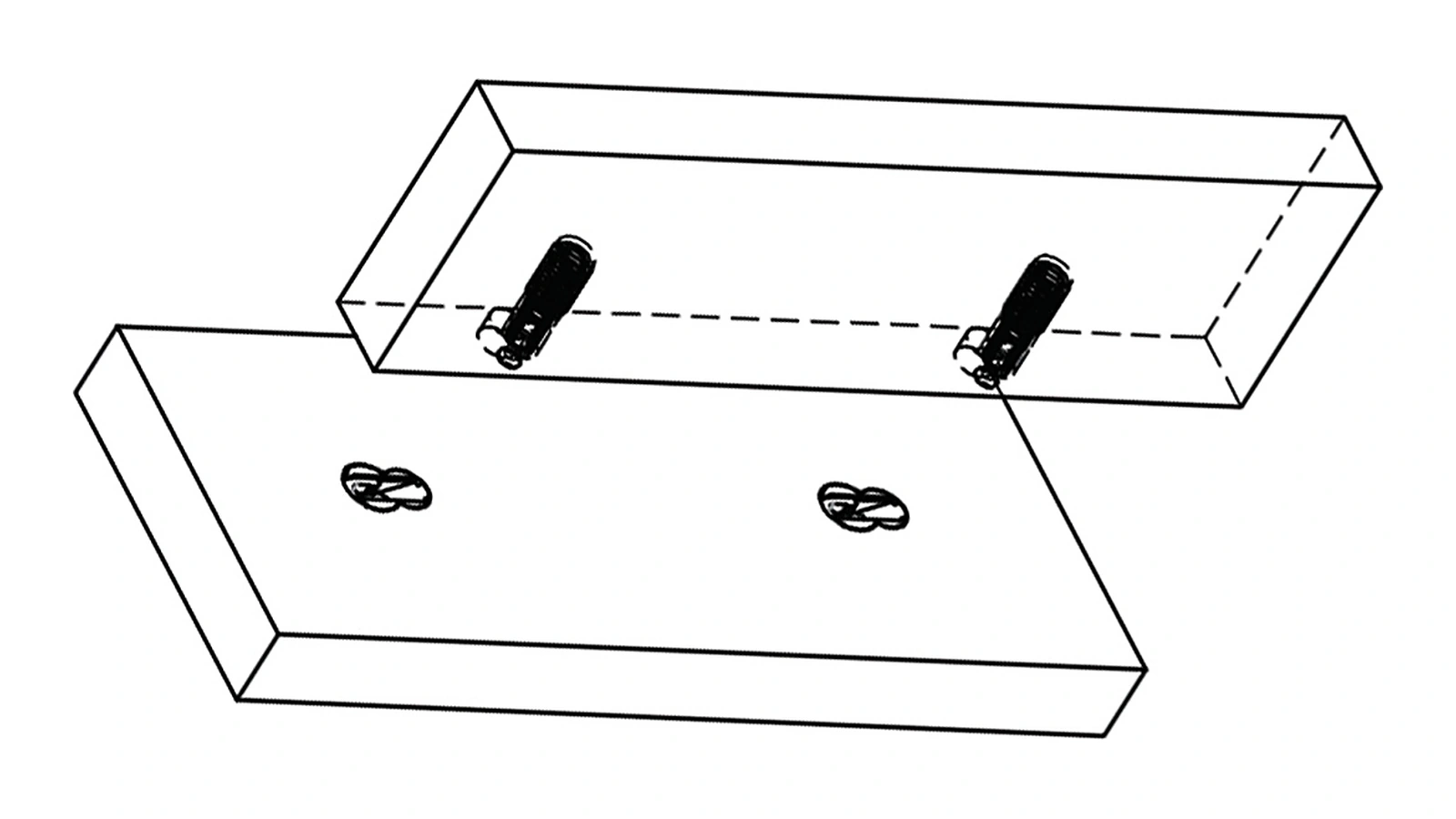

Model D001-SDrillingTool-free final assembly
D001-S
A drilling-type connector for full cabinet assembly in 16–25 mm panels.
- Application
- Full cabinet assembly
- Thickness
- 16–25 mm
Application solution
Full cabinet assembly
Evaluate concealed joining across a complete cabinet structure, then choose drilling or grooving around the production process already in place.
Decision path
What to confirm before model selection
01
Panel material and actual thickness
02
Preferred drilling or grooving workflow
03
Assembly access and visible-surface requirements
04
Pilot fit across repeat production
Five models are mapped. S002 uses the confirmed 18–36 mm panel range; final production approval still requires a physical sample in the actual board material.
Matching models
Models for this application
Model D001-S
Model D001DrillingTool-free final assembly
D001
A drilling-type connector for full cabinet assembly in 16–25 mm panels.
- Application
- Full cabinet assembly
- Thickness
- 16–25 mm
Model D002DrillingTool-free final assembly
D002
A drilling-type connector for concealed full cabinet assembly.
- Application
- Full cabinet assembly
- Thickness
- 16–25 mm
Model S001Slotting / groovingTool-free final assembly
S001
A grooving-type connector for full cabinet assembly in 12–18 mm panels.
- Application
- Full cabinet assembly
- Thickness
- 12–18 mm
Model S002Slotting / groovingTool-free final assembly
S002
A grooving-type connector for full cabinet assembly in 18–36 mm panels.
- Application
- Full cabinet assembly
- Thickness
- 18–36 mm
Engineering next step
Validate the full cabinet assembly in your material
Share your application, panel material, thickness and machining route so we can prepare the right sample discussion.
